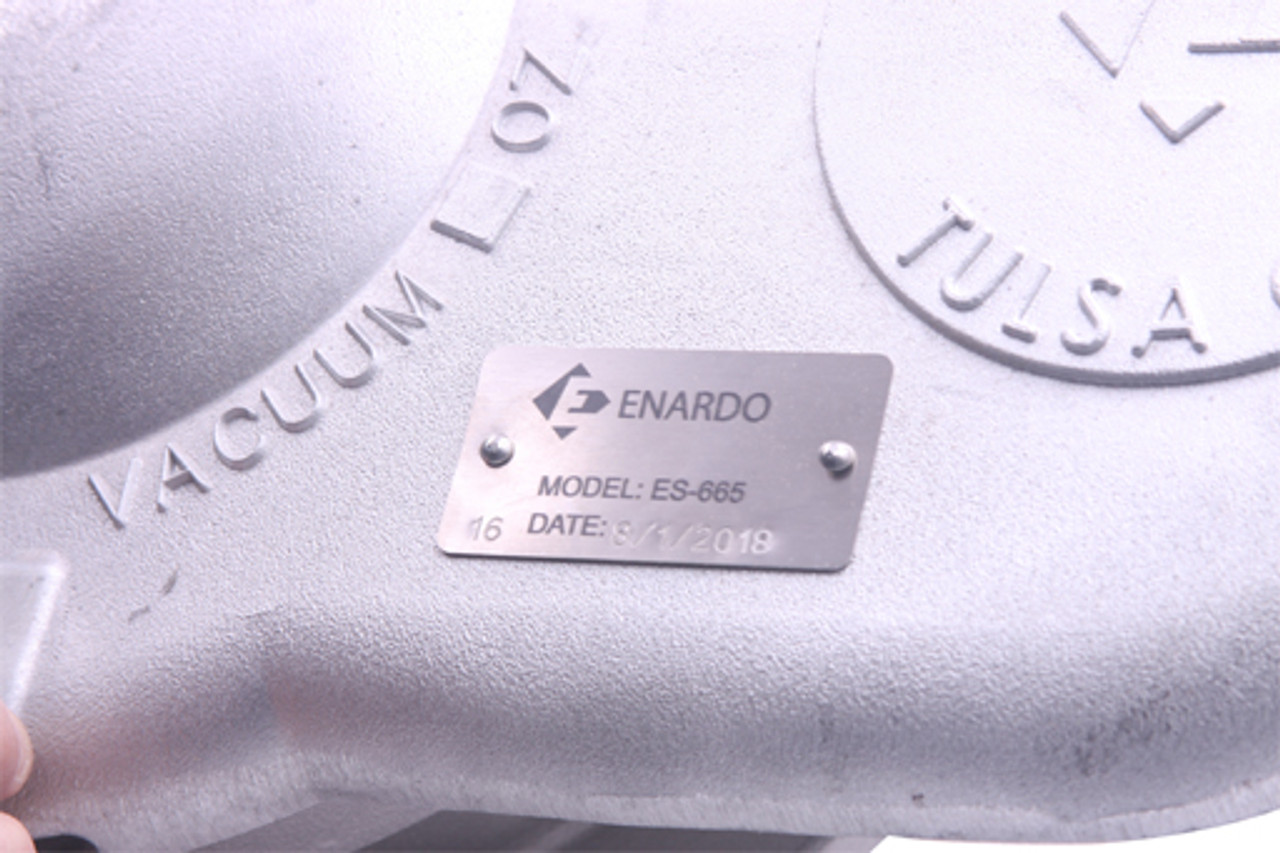

Enardo ES665 Viton Oil Pan Thief Hatch **WITH GROUNDING CABLE**
Enardo ES665L Oil Pan Thief Hatch
The Model ES-665 is a new generation hatch designed with precision-manufactured internal components, a round base and cover, and is intended for use in applications where ultra-tight sealing is required such as sour crude/gas or where strict environmental emissions standards are enforced.
- Enhanced Sealing Technology
- Tank Gauging
- Pressure Control
- Vacuum Control
- Performance: Tight to 0.10 SCFH at 90% of set pressure, at 68°F / 20°C
- Pressure Settings: 4, 6, 8, 12, 16, 24 and 32 oz./sq. in.
- Vacuum Settings: 0.4, 0.9 and 3.5 oz/sq in
- Bolt Pattern: 8 in. API
- Casting: Aluminum
- Pressure Gasket: HNBR (standard), Fluorosilicone, Viton, EPDM
- Vacuum Gasket: Fluorosilicone (standard), Viton, EPDM Food Grade
- Optional Equipment: Base Gasket, Bolt Set, Non-Corrosive Coating, Bonding Strap, Thrust Bearin
